FEATURES:

• Up to 102 Ultrastar HDDs (SAS or SATA)
• Up to 2.2PB raw capacity in 4U using 22TB CMR HDDs
• Dual-port SAS for high availability or single-port SATA for low cost

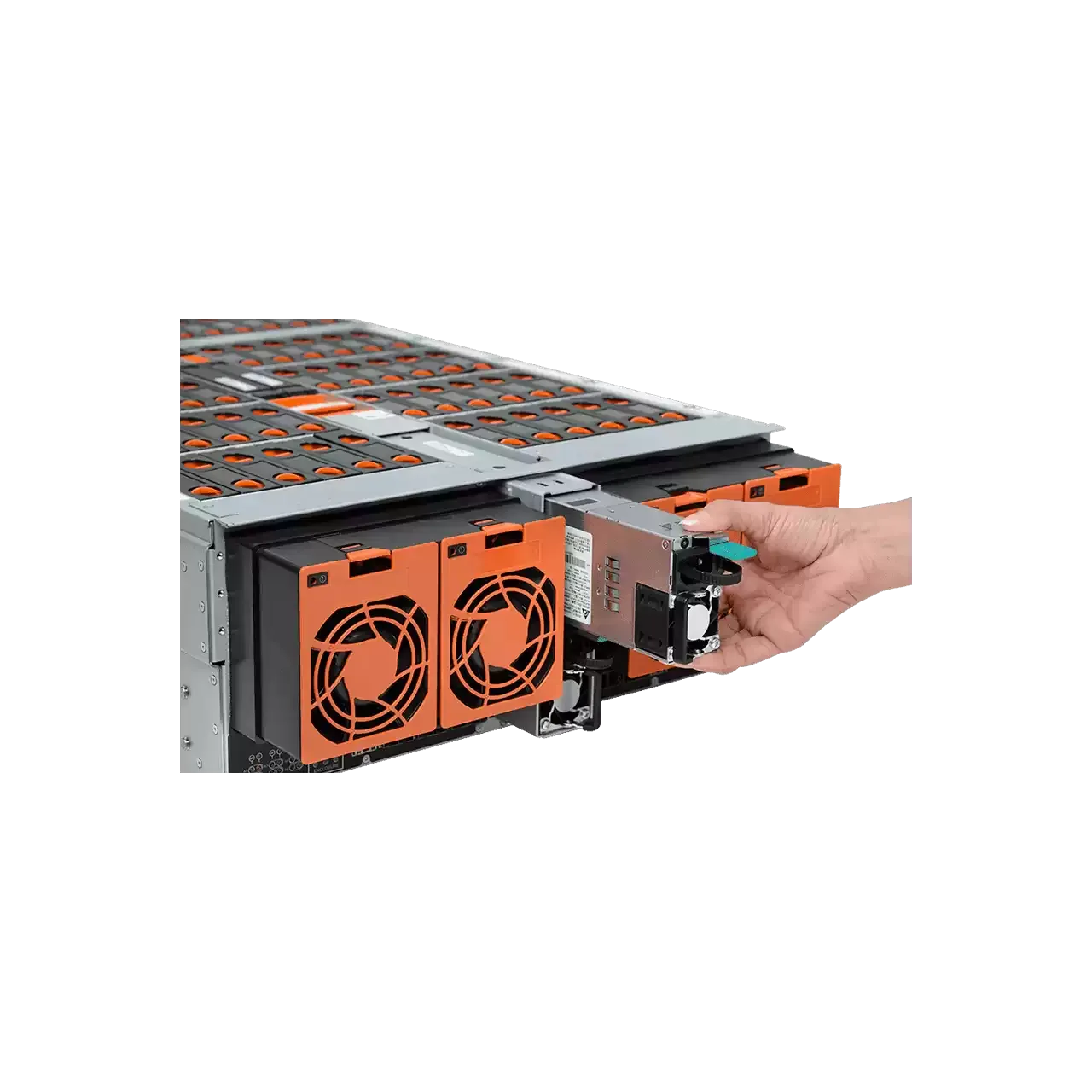

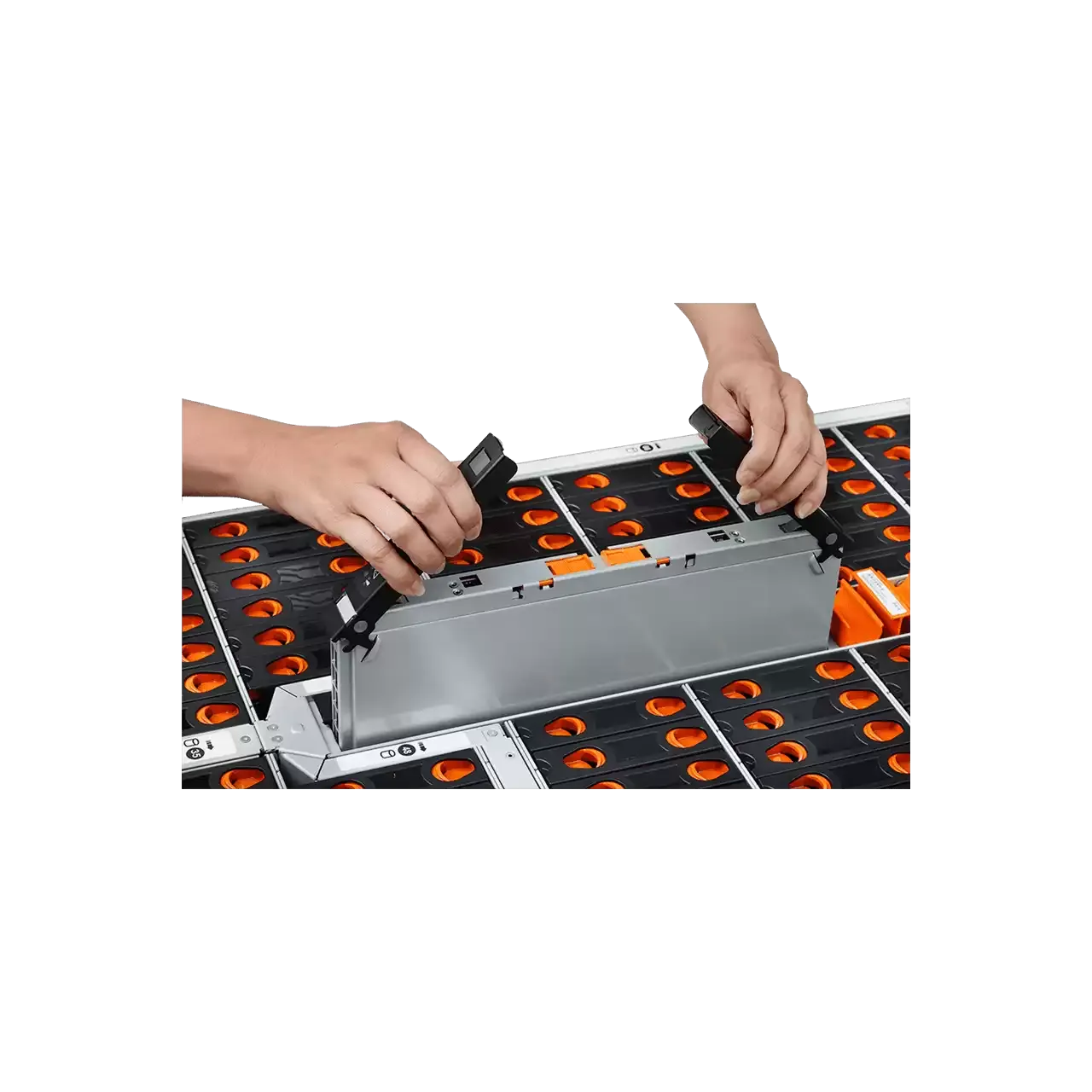

• Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
• 5-year limited warranty

Featured Innovations:

• IsoVibe™ Vibration Isolation Technology
  Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.


• ArcticFlow™ Thermal Zone Cooling Technology
  By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.



• Western Digital Resource Manager
  A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.


Applications and Workloads

• SDS Environments
• Big Data
• Private Cloud
• Data Analytics
• Cloud Infrastructure



SPECIFICATIONS:

Maximum Capacity

• 2.2PB

Max Number of Drives

• 102 x 3.5" Drive Bays

Interface

• SAS
• SATA

Drive Type

• HDD

Rack Height

• 4U

Dimensions (L x W x H)

• 41.22" x 17.6" x 6.89"

INCLUDED:

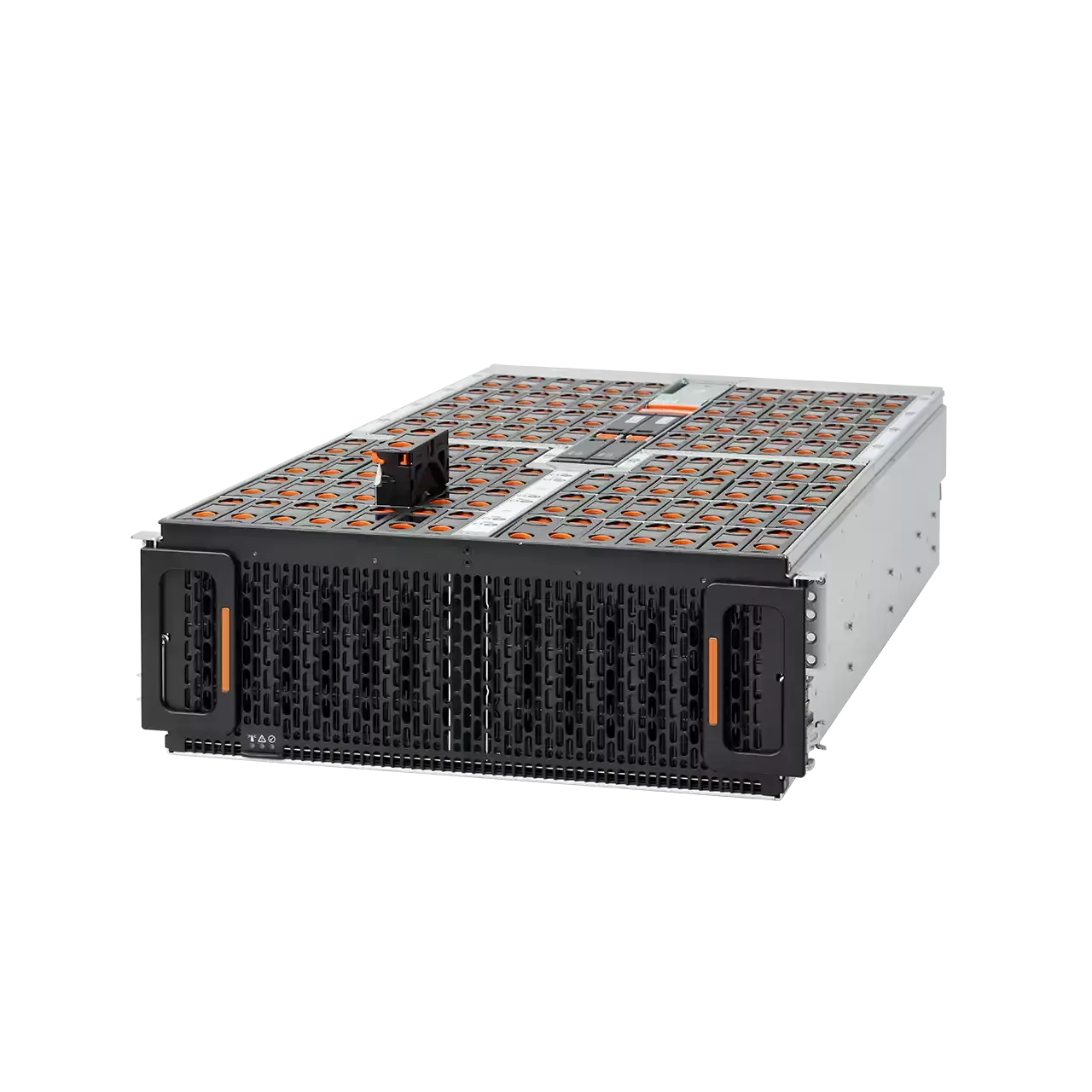

• Ultrastar Data102 Storage Platform
