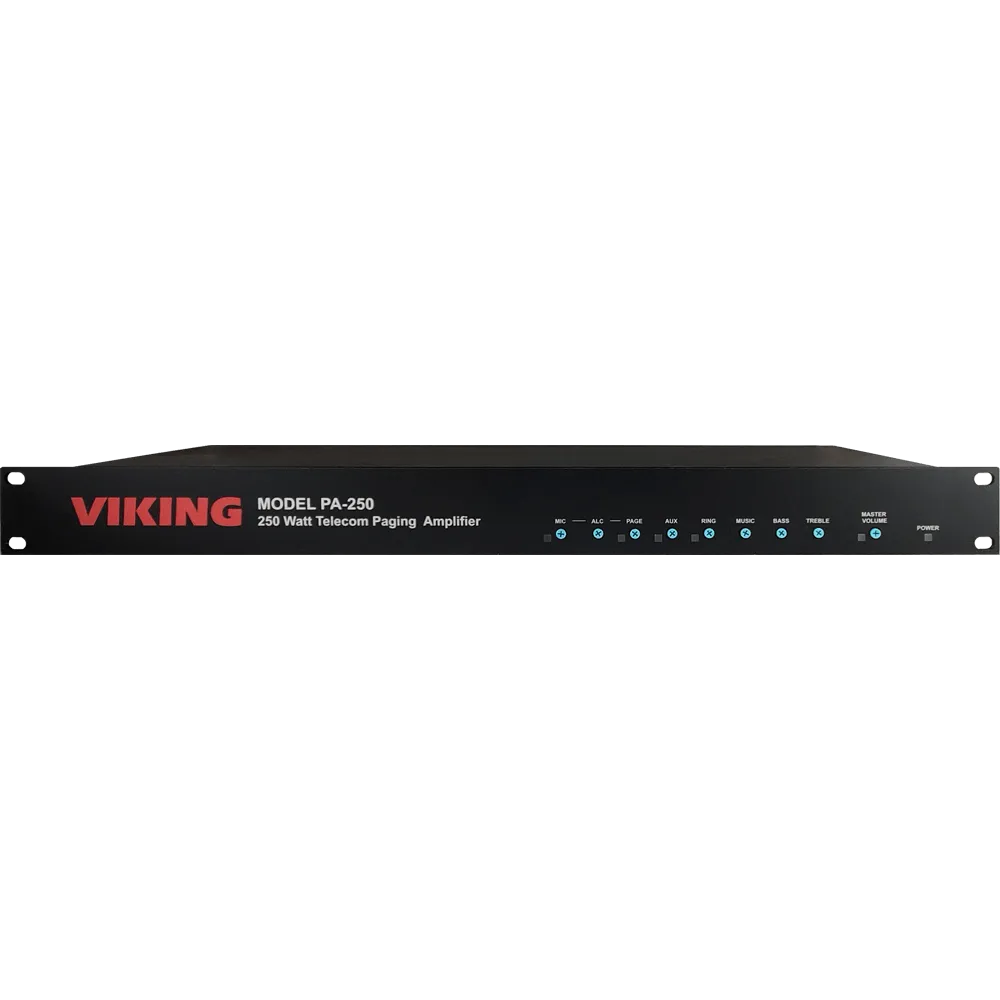

Viking PA-250 Features:

• Powerful 70V amplifier drives up to 250 Watt load
• Page from any analog telecom port, or a direct microphone
• Auxiliary and Background Music inputs
• Individual and Master volume controls
• Bass and Treble controls
• LEDs show audio level and activity
• Programmable input priorities
• Chose between 3 different chime sounds
• Provides Loud Ringing / Night Bell
• Night Transfer switch input
• 600 Ohm output to drive additional amplifiers
• Adjustable Automatic Level Control
• Peak limiter and multiple protection modes
• Manufacturer Warranty 2 Year Limited Warranty

Viking PA-250 Applications

• Paging systems requiring 8 to 250 speakers
• Paging from virtually any POTS, Centrex PABX, digital or IP phone system’s analog port
• Installations that can utilize the below advantages of a 70V distributed audio system:
  – Allows for longer wire runs using smaller gauge speaker wire to save costs
  – Many more speakers can be connected on the same wire run to save costs
  – Each speaker’s volume can be individually set using its own power taps

Viking PA-250 Specifications:

• Power: 100V to 240VAC 50 to 60Hz
• Dimensions: approx. 19” x 1.75” x 6” (483 mm x 44.5 mm x 153 mm)
• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
• Talk Battery: 42V DC
• Paging Output: Capable of driving 250 watt load of 70V speakers
• Connections: (1) 3.5 mm (1/8″) audio jack, (22) removable cage clamp screw terminals, (2) IEC C8 AC power inlets
• Power Cord: Dual IEC C7 plugs “Y” Power Cord included
