$69.99 for a Bluetooth 50A
Stack? That's ridiculous
Stack? That's ridiculous
I know right? With only $69.99, you will get an STM32F405 FC
(better than F411), onboard 4-level battery life indicator, 4GB
Blackbox SD card slot for your flight logs, 4 groups of LED strip pads,
complete with a DJI plug* for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app.
(better than F411), onboard 4-level battery life indicator, 4GB
Blackbox SD card slot for your flight logs, 4 groups of LED strip pads,
complete with a DJI plug* for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app.
Don't forget about the powerful 50A 4-in-1 ESC, built with TVS
protective diode Japan made TDK SMT capacitors external
1000uF low ESR capacitor, everything is for durable build and
smooth flight.
protective diode Japan made TDK SMT capacitors external
1000uF low ESR capacitor, everything is for durable build and
smooth flight.
All of that for only $69.99! Top-shelf spec at a crazy low price, what
are you waiting for?
are you waiting for?
* The DJI Air Unit plug is completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Configure your FC and ESC
via Bluetooth
via Bluetooth
With SpeedyBee app, turn your phone into an all-in-one
FC configurator and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC experience with
SpeedyBee app.
FC configurator and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC experience with
SpeedyBee app.
Powerful Real 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy
soldering. Built with Japan made TDK filtering SMT capacitors
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
soldering. Built with Japan made TDK filtering SMT capacitors
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
Forgot your LiPo checker?
Just look at the FC!
Just look at the FC!
Built with a 4-level LED battery indicator, now you can fly
anywhere worry-free - even without your lipo checker!
anywhere worry-free - even without your lipo checker!
* 1 light constantly on: battery level 10-25%
1 light blinking: battery level < 10%
8 motors output for X8/Y6/
fixed-wings
fixed-wings
You could use this stack to build your X8 drones, Y6 drones or
fixed wings. Forget about crawling through your massive build
just to plug in that USB cable. Just take out your phone to
configure everything in the SpeedyBee app.
fixed wings. Forget about crawling through your massive build
just to plug in that USB cable. Just take out your phone to
configure everything in the SpeedyBee app.
Change motor directions
wirelessly!
wirelessly!
Finishing your latest build? Just replaced your motor after a crash?
Take your smartphone out, and configure your motor direction
wirelessly with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.
Take your smartphone out, and configure your motor direction
wirelessly with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.
4 sets of LED pads with
simple switching
simple switching
Need more visibility at night? Just solder up your LED strips*
and blaze the darkest trail you can find. With just one tap on t
he BOOT button, you can cycle through all different LED presets**
and pick the one you love!
* LED strips could be purchased
**Or long press the boot button to switch to Betaflight LED mode
and blaze the darkest trail you can find. With just one tap on t
he BOOT button, you can cycle through all different LED presets**
and pick the one you love!
* LED strips could be purchased
**Or long press the boot button to switch to Betaflight LED mode
1000uF Low ESR capacitor
TVS protective diode =
Extra protection
TVS protective diode =
Extra protection
The ESC is built with TVS protective diode to absorb the voltage
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1000uF low ESR
capacitor, ensuring clean data from the gyro to the FC.
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1000uF low ESR
capacitor, ensuring clean data from the gyro to the FC.
And packaged with more
useful features
useful features
● Built-in barometer for accurate height calculation
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A 5V 2A individual BECs
● 4 x UARTs for your receiver VTX camera GPS.
● Power your GPS with a USB cable - no battery needed.
No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A 5V 2A individual BECs
● 4 x UARTs for your receiver VTX camera GPS.
● Power your GPS with a USB cable - no battery needed.
No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
*Betaflight firmware requires the type of the microSD card to be
either Standard (SDSC) or High capacity (SDHC), so extended
capacity cards (SDXC) are not supported(Many high-speed U3 cards
are SDXC). Also the card MUST be formatted with the FAT16 or FAT32
(recommended) filesystems. So, you could use any SD card less than
32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this and choose
'Overwrite format' then format your card. Also check out for
the recommended SD cards or buy the from our store.
either Standard (SDSC) or High capacity (SDHC), so extended
capacity cards (SDXC) are not supported(Many high-speed U3 cards
are SDXC). Also the card MUST be formatted with the FAT16 or FAT32
(recommended) filesystems. So, you could use any SD card less than
32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this and choose
'Overwrite format' then format your card. Also check out for
the recommended SD cards or buy the from our store.
Dimensions
Wiring Diagram

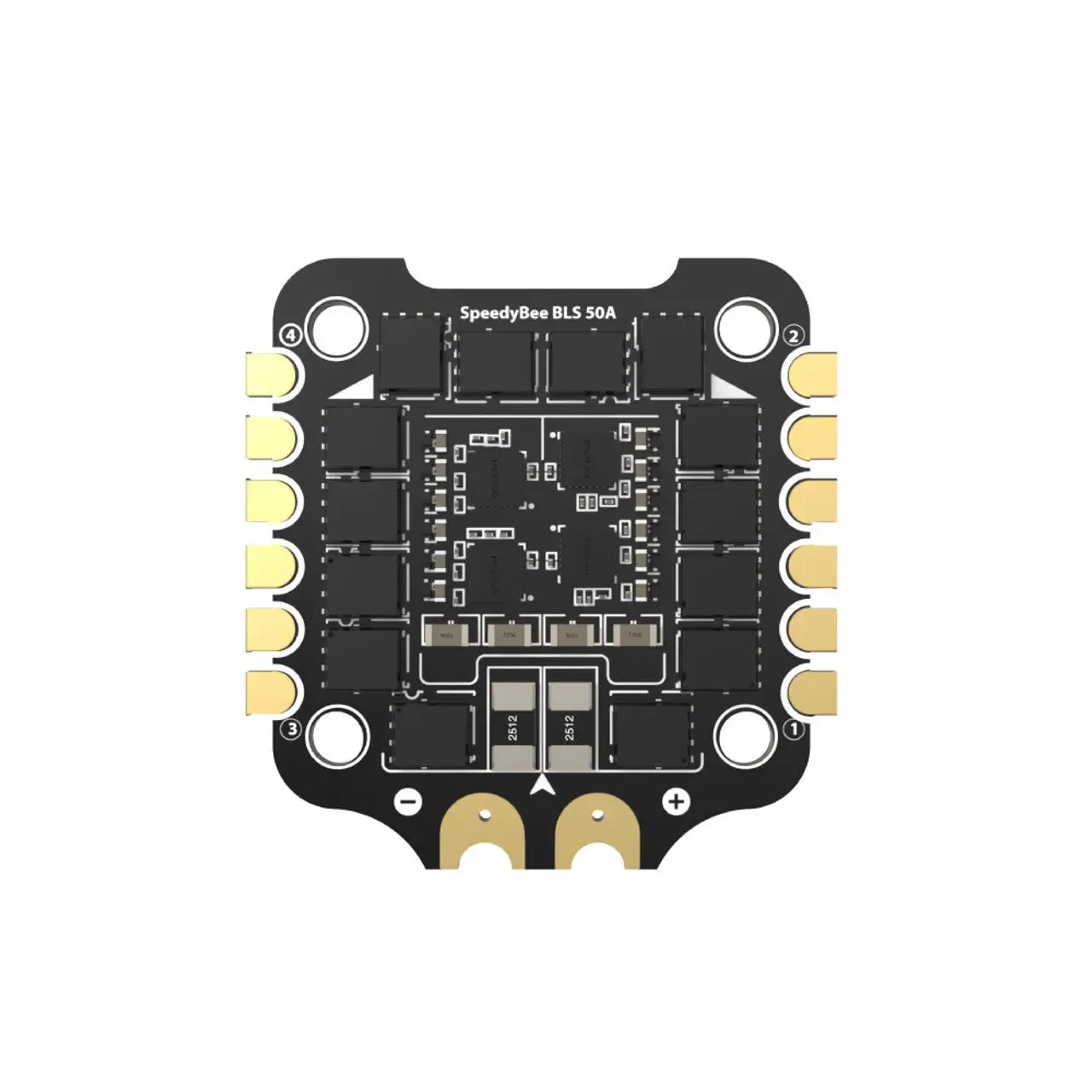

50A 3-6s BLHeli_S 4-in-1 ESC
- Large motor pads for easy soldering
- Smooth flight experience
- 1500uF ESR Capacitator
- 30×30 mounting holes
- Robust BB21 MCU
- BLHeli_S JH50
- TVS diode
Package Includes:
1× SpeedyBee F405 BLS 50A 30x30 4-in-1 ESC
Specifications:-
| Product Name | SpeedyBee BLS 50A 30x30 4-in-1 ESC |
| Firmware | BLHeli_S JH50 |
| Wireless Configuration | Full Configuration Supported in the SpeedyBee app |
| PC Configurator Download Link | |
| Continuous Current | 50A * 4 |
| Burst Current | 55A(5seconds) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=386 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) * 6.1mm(H) |
| Weight | 13.8g |
