Product Details
＋

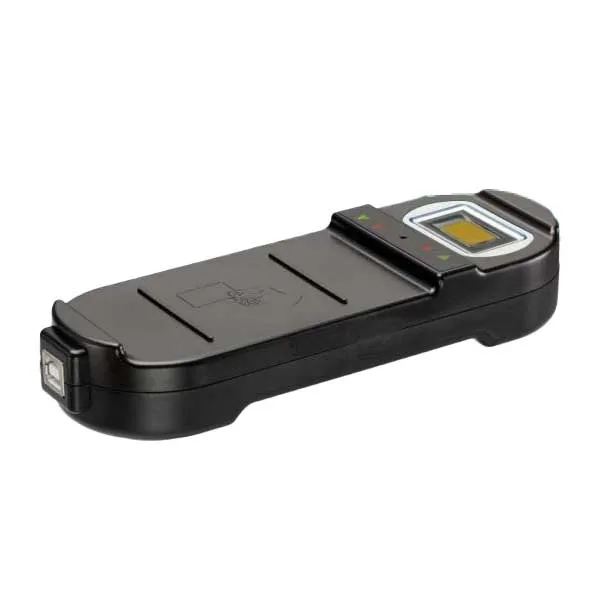

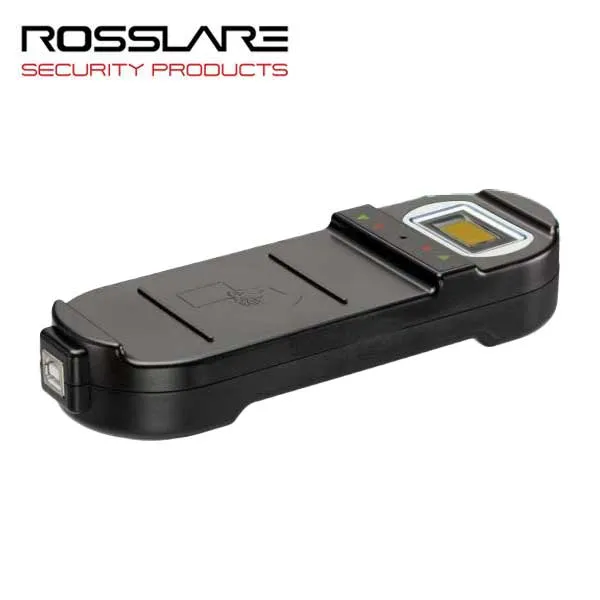

Rosslare's CP-R26 is a sophisticated high-security desktop programmer unit for custom MIFARE Classic® EV1 ISO 14443A contactless card applications. This lightweight, sleek designed desktop unit offers high flexibility, easy to use, card programming, fingerprint enrollment and management via Rosslare's PC software AS-B01. CP-R26 is compatible with Rosslare's Sector and Full Fingerprint biometric readers. For best performance we recommend using Rosslare accessories.
Features
- Provides content and writing definitions for the sectors
- Creates master cards for easy and fast reader configuration
- Allows the user to read, program, and verify cards quickly and easily
- USB 2.0 computer connection (identified automatically, no drivers needed)
- LEDs and sounder indicate different activities, including user guidance and success or error indications
- Cards types supported: MIFARE Classic EV1 ISO 14443A
- Slim and lightweight design, small desktop footprint
Specifications:
| Operating Voltage Range: | 12 VDC from a USB |
| Input Current: | Standby: 155 mA Maximum: 230 mA |
| Indicators: | Card green/red LED: Provides visual feedback on card reading and writing as well as success or fail indication Fingerprint green/red: Provides visual feedback on card reading and writing as well as success or fail indication Fingerprint three blue small LEDs: indication for the user to swipe a finger when needed Sounder: Provides audible indication for guidance as well as operation success or failure |
| Operating System: | Windows XP SP2, Windows Server 2003, Windows Server 2008, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Processor: | Minimum 400 MHz Pentium or equivalent |
| RAM Memory: | 512MB |
| Free Hard Disk space: | 1 GB |
| USB: | One USB 2.0 port |
| Fingerprint Sensor Type: | Capacitive type CS |
| RF Frequency: | MIFARE Classic EV1 Compatible 1K and 4K ISO-14443A-3 13.56 MHz Card |
| Dimensions: | 6.2 x 2.3 x 1.3 in. |
| Product Warranty: | 2-Year Limited Product Warranty |
