The Raspberry Pi M.2 HAT facilitates the connection of M.2 peripherals, including NVMe drives and AI accelerators, to Raspberry Pi 5's PCIe 2.0 interface. This allows for quick (up to 500 MB/s) data transfer between NVMe drives and other PCIe accessories.
Overview

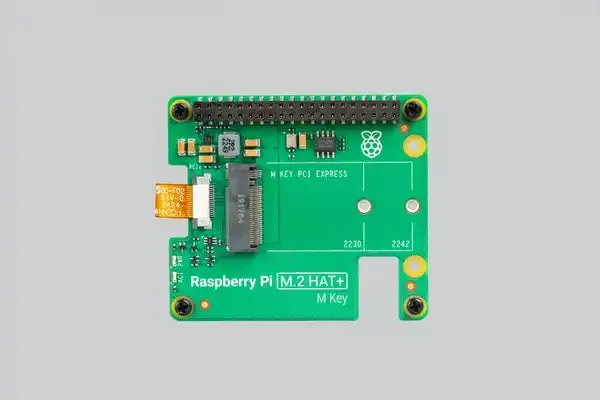

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

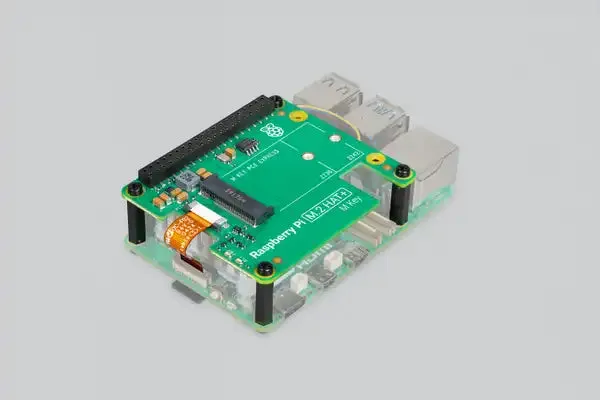

The Raspberry Pi M.2 HAT conforms to the Raspberry Pi HAT specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.
Specifications
Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
Supports devices that use the M.2 M key edge connector • Supports devices with the 2230 or 2242 form factor
Capable of supplying up to 3A to connected M.2 devices • Includes power and activity LEDs
Conforms to the Raspberry Pi HAT specification
Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
Documents
Obsolescence Statement
Raspberry Pi M.2 HAT will remain in production until at least January 2032
