Features
- Provide 4 x 100Mbps Ethernet ports, 2 x 100Mbps up-link ports
- Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power high-power infrared cameras.
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards.
- Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX
- Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
- Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping power supply; Easy to maintain system; Help monitoring pictures recover quickly.
- Various LED display functions can real-timely display the device’s current working conditions, and help prompt facility and remove trouble easily.
- Excellent lightning protection, lightning capacity up to 4KV
Specifications
|
Model |
PTC-F4P-120 |
|
|
Power Supply |
Power Supply Mode |
Power Adaptor |
|
Voltage Range |
DC48~56V |
|
|
Power Consumption |
The device <5W， POE power supply <120W- |
|
|
Network Port Parameter |
Network Ports |
1~4 Ethernet Port：10/100Mbps 2 Uplink Port：10/100Mbps |
|
Transmission Distance |
1~4 Ethernet Port：100m Mandatory 10 Mbps reach up to 250m Uplink port：100m |
|
|
Transmission Media |
1~4 Ethernet Port：Cat5e/6 standard UTP cable， Uplink Port：Cat5e/6 standard UTP cable |
|
|
POE Agreement |
IEEE802.3 af/at standards |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port ≤30W，Whole device＜120W |
|
|
Network Switch Specification |
Network Standard |
IEEE802.3 10BASE-T、IEEE802.3u 100BASE-TX/FX、IEEE802.3az（Uplink optical fiber port ) |
|
Swap Mode |
Store-and- forward |
|
|
Data-Caching Mechanism |
448K |
|
|
MAC Address List |
1K |
|
|
Status Indicators |
Power Indicator Light |
One power light （red） |
|
FE Uplink Port |
LED (Green): On, port is link on Off, port is link down, Blink when transceiver data;LED(Yellow):on when link speed is 100M,Off when link speed is 10M |
|
|
PoE Indicator |
4 PoE indicator light（yellow） |
|
|
PoE Network Port LED |
1~4 port ( green light on RJ45 jack) Blinking when transceiver data |
|
|
Restart Indicator |
1 restart indication light (green), light on when press the button |
|
|
Vlan Indicator |
One green indication light |
|
|
Button/ Switch |
Reset Button |
One button. Whole machine will restart while press the button. |
|
Vlan Switch |
One, slide switch to “ON” press restart button, Vlan function opens |
|
|
Protection Level |
Surge Immunity |
Level 3, executive standard：IEC61000-4-5 |
|
Electrostatic Protection |
1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard：IEC61000-4-2 |
|
|
Operating Environment |
Working Temperature |
0℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Humidity(non-congeal) |
0~95% |
|
|
Mechanical Attributes |
Dimensions (L*W*H) |
160mmx94mmx27.6mm |
|
Color |
Black |
|
|
Weight |
425g |
|
|
Reliability |
Mean time between failures （MTBF） |
＞50000h |

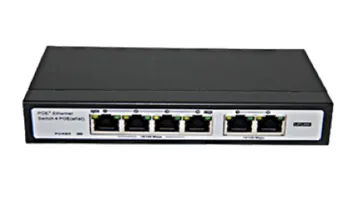

Front & Rear Panel
- Power Indicator 2. ACT/LINK Indicator 3. PoE pot
- PoE Indicator 5. Uplink port 6. Uplink Indicator
- Reset 2. Reset Indicator 3. VLAN Indicator
- VLAN 5. Ground connection 6. Input: DC 48-56V
