Name: Malibu - Access Control Extension Panel - 4 Doors - UL Listed
SKU: 303491

Product Details ＋

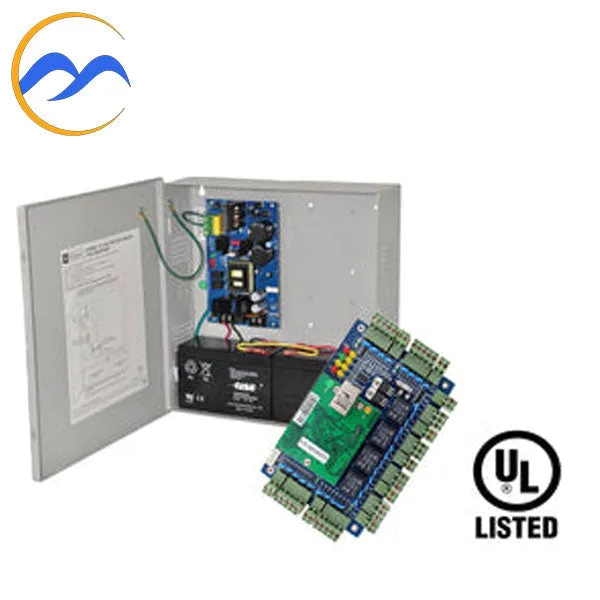

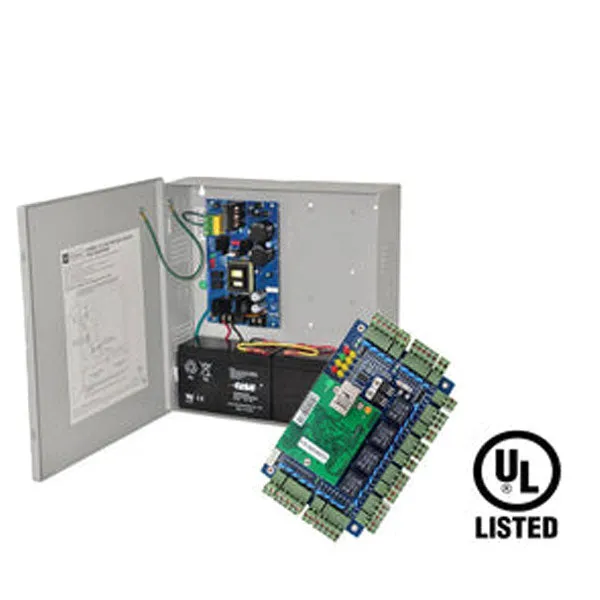

This UL Listed panel control 4 doors via RFID card access and managed by the easy-to-use Malibu access control module. It is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC non power-limited output. Mounting magnets are included to accommodate screws and nylon standoffs to allow for mounting various boards/accessories in any metal enclosure or back plane.

**Back up battery not included**

Note: Must have the UL Listed 4 door controller with module (MAC-004-ALCM) to use this extension. The 4 door controller with module controls the first 4 doors and this extension allows you to add 4 additional doors either in the same or different location. (additional multiples of 4 doors require an extension for each set.)

Each door requires a Monthly Licencse Fee Per Door Please be sure to manually add a monthly subscription for each door needed.

Now this Module has Mobile Credentials. The mobile credential can be setup with the same access level as a normal RFID card. Download the ""app to use your phone for access control. It doesn't use Bluetooth. It's the most simple yet secure mobile credential on the market.

Features:

Input 115VAC, 60Hz, 3.5A
Output 12VDC or 24VDC selectable output
6A continuous supply current
Filtered and electronically regulated output
Short Circuit and thermal overload protection
Built-charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails
AC fail supervision (form "C" contacts)
Notification trigger is selectable for 30 seconds (factory set) or 6 hours
Low battery supervision (form "C" contacts)
Battery presence supervision (form "C" contacts)
AC input and DC output LED indicators
Operating 0° C to 49° C (32° F to 120° F)
Storage - 20° C to 70°C ( - 4° F to 158° F)
Relative Humidity 85% /- 5% (BTU/Hr[approx] 12VDC: 37 BTU/Hr, 24VDC: 74 BTU/Hr)
System AC input VA requirement: 402.5VA
Wall mount enclosure for indoor use
Accommodates up to two (2) 12VDC/7AH Batteries
Dimensions 13"W x 13.5"H x 3.25"D (330mm W x 343mm H x 83mm D)
1/2" and 3/4" combination knockouts

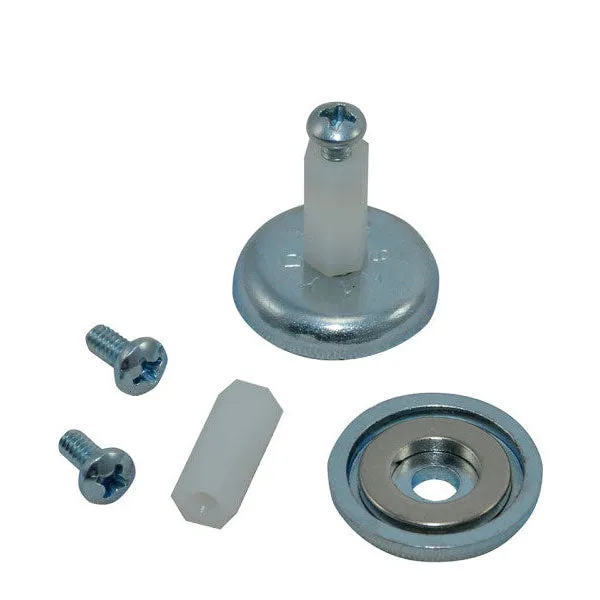

Customize the metal enclosure or back plane to accommodate power supplies, distribution boards, access controllers, and accessories
Easy, fast installation saves time and labor - no drilling required
Can be reused and re-positioned
Zinc alloy cover eliminates the possibility of EMI/RFI
26 lbs max strength
23.2mm (1") diameter cup, 6.5 mm hole size
Includes hardware (screws and standoffs)

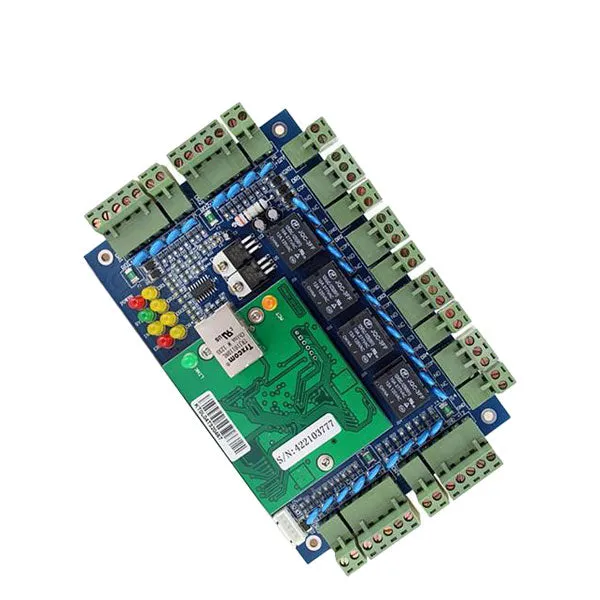

Specifications:

PCB Board Size	160 x 106mm (6.3 x 4.17 in)
Case Size	273 x 228 x 65 mm (10.75 x 8.98 x 2.56 in)
Power Supply	12V DC 4-7A
Power Consumption of Circuit Board	<100mA
Doors Controlled	8 doors with MAC-004-ALCM
Door Opening Time Extending Setting	1-600 seconds (adjustable)
Operation Temperature	-40℃~70℃ (-40ºF~158ºF)
Operation Humidity	10-90% R, No condensation
Quantity of users	20,000
Quantity of Event Buffers (offline)	100,000 event buffers
Power interruption protection measure	High speed memory, records never lost
Max Distance from reader to controller	100m or 328ft (suggested distance 80m or 262 ft)
Max distance between controllers	TCP/IP: Depends on net coverage area
Alarm	Alarm for door open for extended time, illegal break in, intimidate
Unlock	Based on internal and external validation
