Product Details
＋
Overview

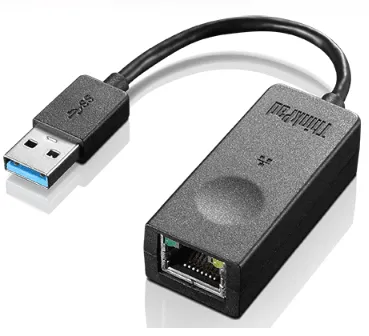

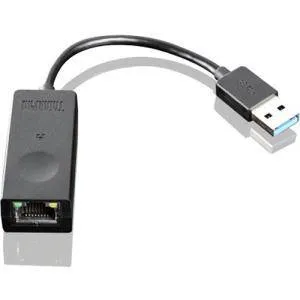

The ThinkPad USB3.0 to Ethernet Adapter is quick and easy way to connect your notebook and desktop to Ethernet connections. It’s ideal for imaging of systems or transferring large files quickly.
Features & Benefits
- Sleek design
- Full-size RJ45 connector
- LEDs on RJ45 connector to indicate activity and link status
- Support PXE boot, Wake-On-LAN, MAC pass through if host notebook supports
- Note: Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual data transfer rate will be slower than 5 Gbit/s on USB 3.1 Gen 1 (USB 3.0) connectors, slower than 10 Gbit/s on USB 3.1 Gen 2 connectors, and slower than 20Gbit/s on USB 3.2 connectors.
Tech Specs
| Color | Black |
| Connection Type | USB 3.0 |
| Hardware Requirements | Does not support POE(Power over Ethernet) |
| Brand | ThinkPad |
| Packed Weight | 41g |
| Other Electrical Specifications | Two LEDs on RJ45 port for power and data transfer indication. Green for power and Yellow for activity Full Duplex flow control (IEEE 802.3x) Support MAC pass through on selected ThinkPad notebook systems Support PXE boot on selected ThinkPad notebook |
| Ethernet | Full size RJ45 connector Giga bit speed when running on USB3.0 environment 100M/10M adapt when running on USB2.0 environment Compliant with IEEE 802.3 and IEEE 802.3u IEEE 802.3az Giga bit Ethernet requirement |
| Package Type | PE bag |
| Maximum Relative Humidity (%) | 95 |
| Minimum Relative Humidity (%) | 20 |
| Shipment Group | USB3.0 to Ethernet Adapter, Publications |
| Supported Operating Systems | OS Independent |
