• Quickly add an HDMI and Gigabit Ethernet port
• Supports HDMI resolutions up to 4K @ 30 Hz
• USB 3.0 Type-A port x 3
• Supports USB Type-C upstream & downstream: charging, power delivery 3.0 and data transfer
• SD/MicroSD card slots allow for external memory access

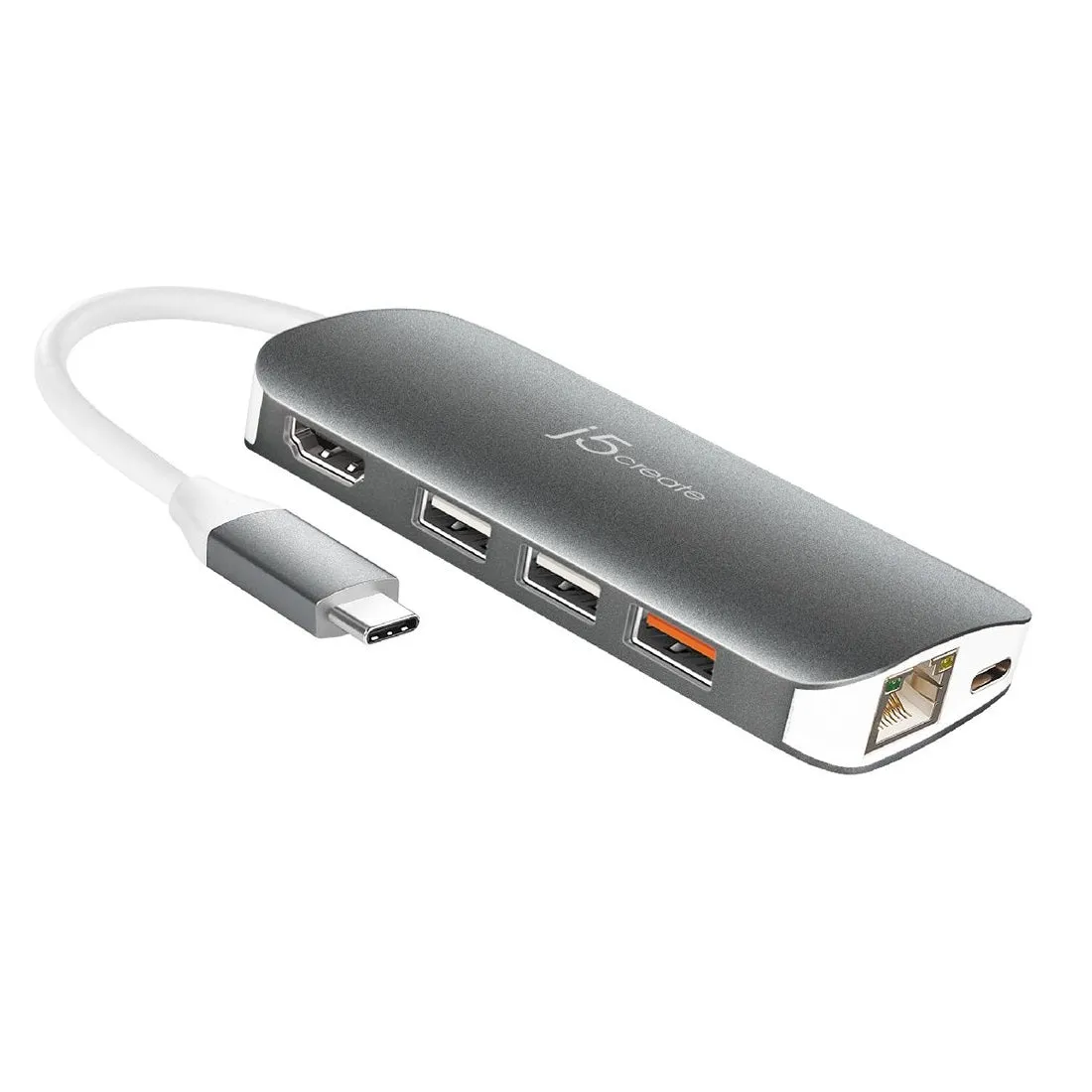

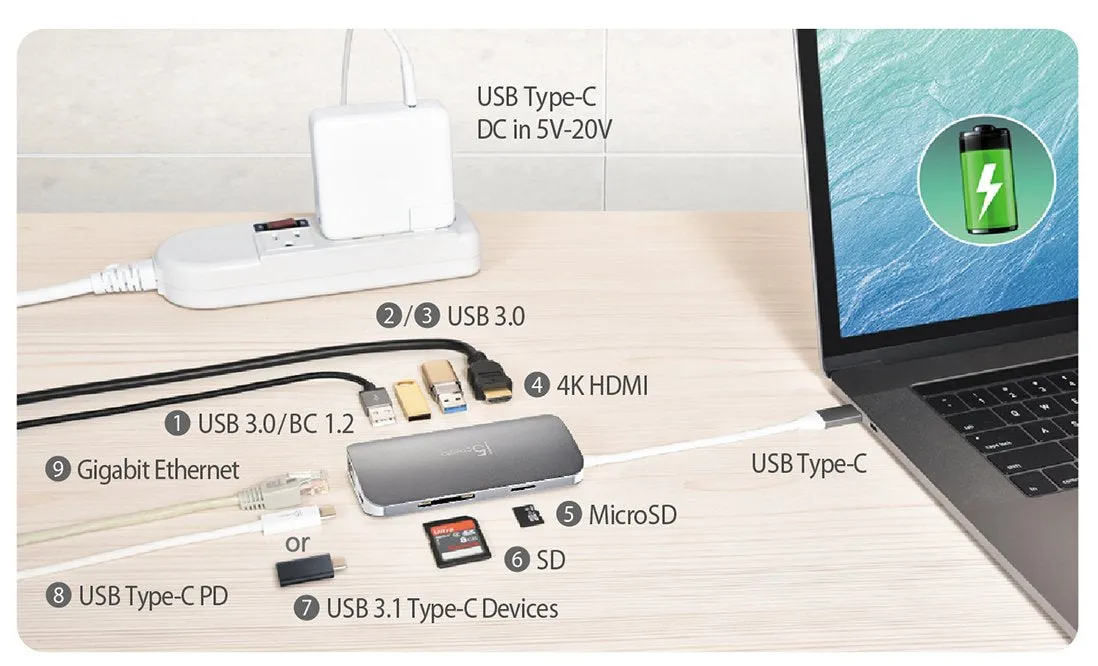

The j5create USB Type-C Multi Adapter provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add an additional USB 3.1/SD/Micro-SD computer peripheral, HDMI monitor or Gigabit Ethernet through your USB ports. One of the USB 3.0 SuperSpeed port supports fast charging for smartphone/tablet/iPad®. USB Type-C port supports charging, power delivery 3.0 and data transfer. When connected with a power source, the USB Type-C input charging port allows you to keep charging your notebook or smartphone. USB Type-C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C offers greater power delivery and faster data transfer rates of up to 5 Gbps.

Specification
Interface
Host Interface
USB Type-C Male Type-C connector

Video Interface
HDMI Female Connector x 1

Type-C Port
USB Type-C Female connector x 1

Ethernet Port
RJ-45 Female connector (Gigabit Ethernet) x 1

USB Port
USB 3.0 Type-A Female connector

Card slots
USB 3.0 SD x 1 Slot
USB 3.0 Micro-SD x 1 Slot

Power
Power Mode

Bus-powered or self-powered

Functions
HDMI

Display resolution: 4K @ 30 Hz
Type-C

Upstream & downstream: charging, power delivery 3.0 and data transfer
USB

USB 3.0 Type-A port x 3 (USB 3.1 Gen1/ 5 Gbps)
Ethernet

Transfer Rate:
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

¥ Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
¥ Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
¥ Supports Jumbo Frame
¥ Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Physical Specifications

Dimensions
Main body:
0.16 (W) x 0.34 (H) x 0.05 (D) in.
50 (W) x 105 (H) x 16.5 (D) mm

Weight
Approximately: 0.23 lbs/105g
(including cable)

Environmental

Storage Temperature
-10-65°C

Storage Humidity
< 85% non-condensing

Operation Temperature
0-40°C

Operation Humidity
< 85% non-condensing
