Product Details
＋

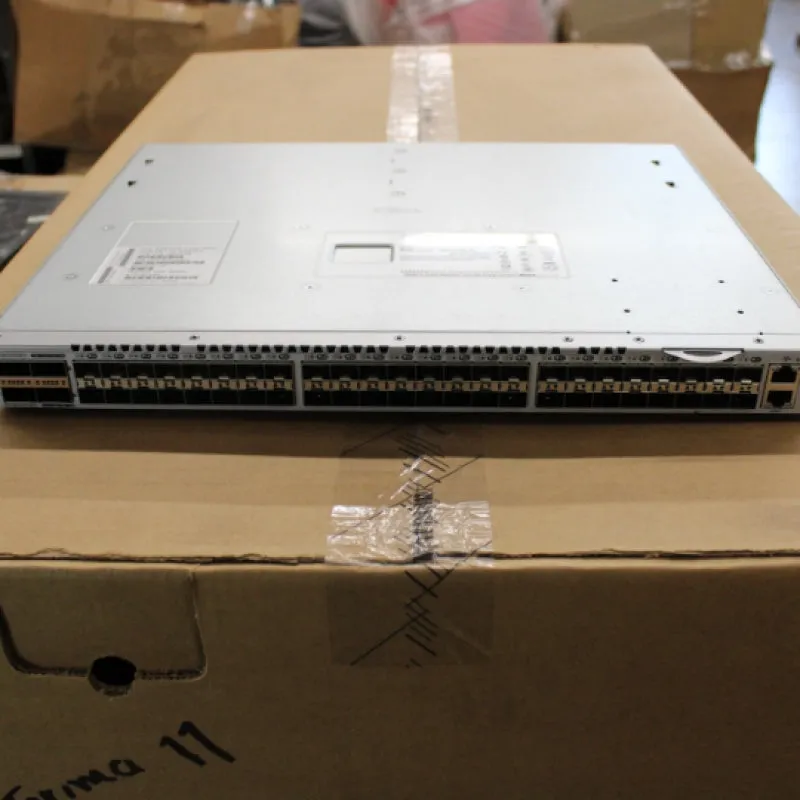

This is an HPE StoreFabric SN6600B 32Gb 48/48 Power Pack Fibre Channel Switch - Switch - managed - 48 x SFP 4 x QSFP - rack-mountable. Its part number is Q0U57B.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Device Type Switch - 48 ports - managed
- Enclosure Type Rack-mountable 1U
- Subtype Fibre Channel
- Ports 48 x SFP 4 x QSFP
- Performance Aggregate bandwidth: 2 Tbps ¦ Port-to-port latency: 700 ns
- Capacity Maximum frame size: 2112
- Remote Management Protocol SNMP 1, SNMP 3, HTTP, SMI-S, SSH, CLI, HTTPS, SSH-2
- Encryption Algorithm SSL
- Authentication Method DH-CHAP, FCAP, LDAP, RADIUS, TACACS
- Features ISL support, Syslog support, manageable, RBAC, SCP, SFTP client, SFTP server, QoS, FPI monitoring, SDDQ, DFP, DPS, Enhanced BB Credit Recovery, FDMI, FSPF, ISL Trunking, RSCN support, RCS, SNS
- Interfaces 48 x 32Gb Fibre Channel SFP ¦ 4 x 32Gb Fibre Channel QSFP ¦ 1 x 100Base-TX management ¦ 1 x console management ¦ 1 x USB
- Power Device Internal power supply - hot-plug
- Installed Qty 2
- Max Supported Qty 2
- Power Redundancy Yes
- Power Redundancy Scheme 1 1

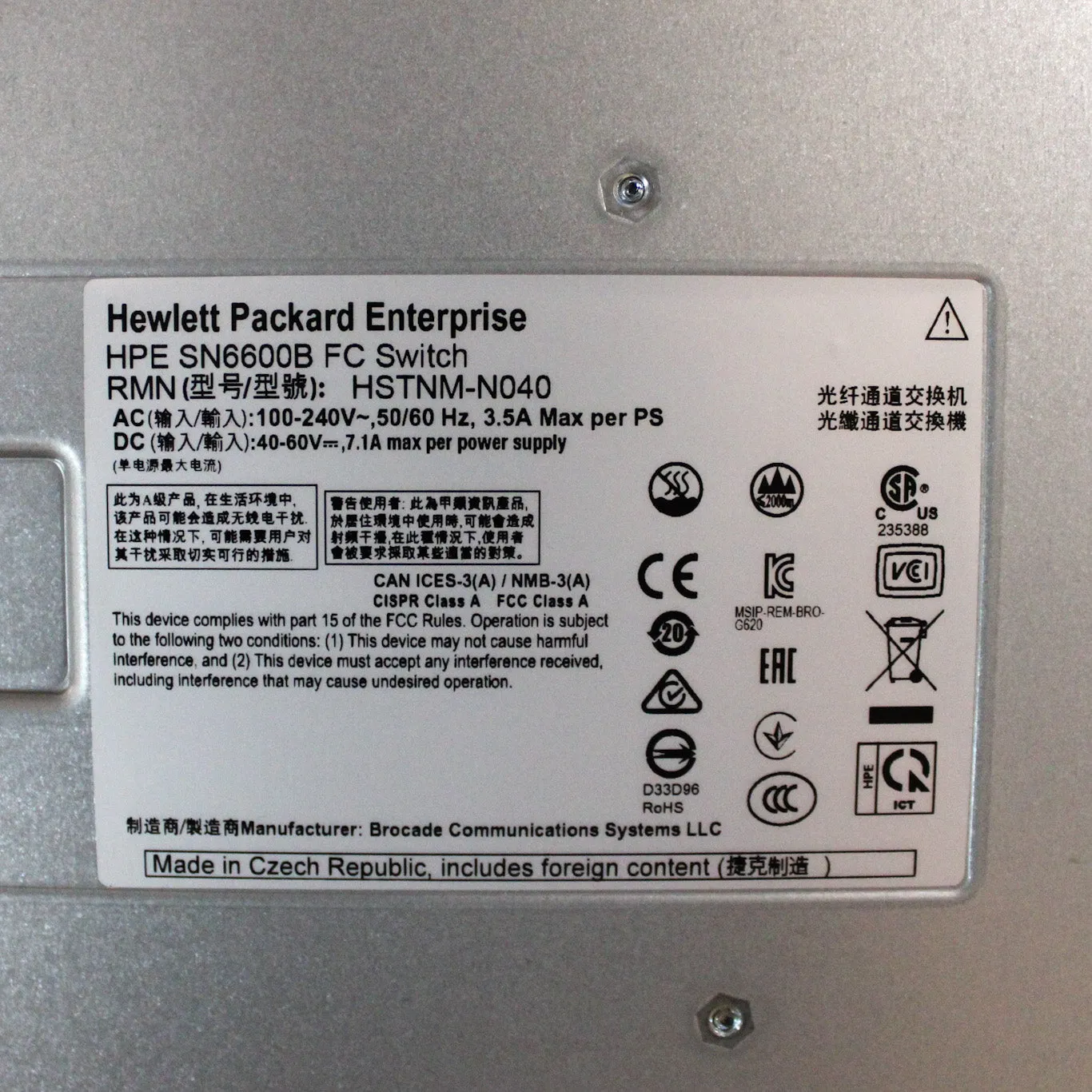

- Voltage Required AC 120/230 V (50/60 Hz)
- Cables Included 1 x serial cable
- Rack Mounting Kit Included
- Software Included Advanced Web Tools, Advanced Fabric OS, Advanced Zoning, Power Pack , ISL Trunking, Extended Fabric
- Width 17.3 in
- Depth 14 in
- Height 1.7 in
- Weight 17.04 lbs
- Min Operating Temperature 32 °F
- Max Operating Temperature 104 °F
- Humidity Range Operating 10 - 85% (non-condensing)
- Min Storage Temperature -13 °F
- Max Storage Temperature 158 °F
