Please note, this is a demo refurbished item. It has been repaired by Godox and missing the original box. The body has cosmetic damaged, but is fully functioning.

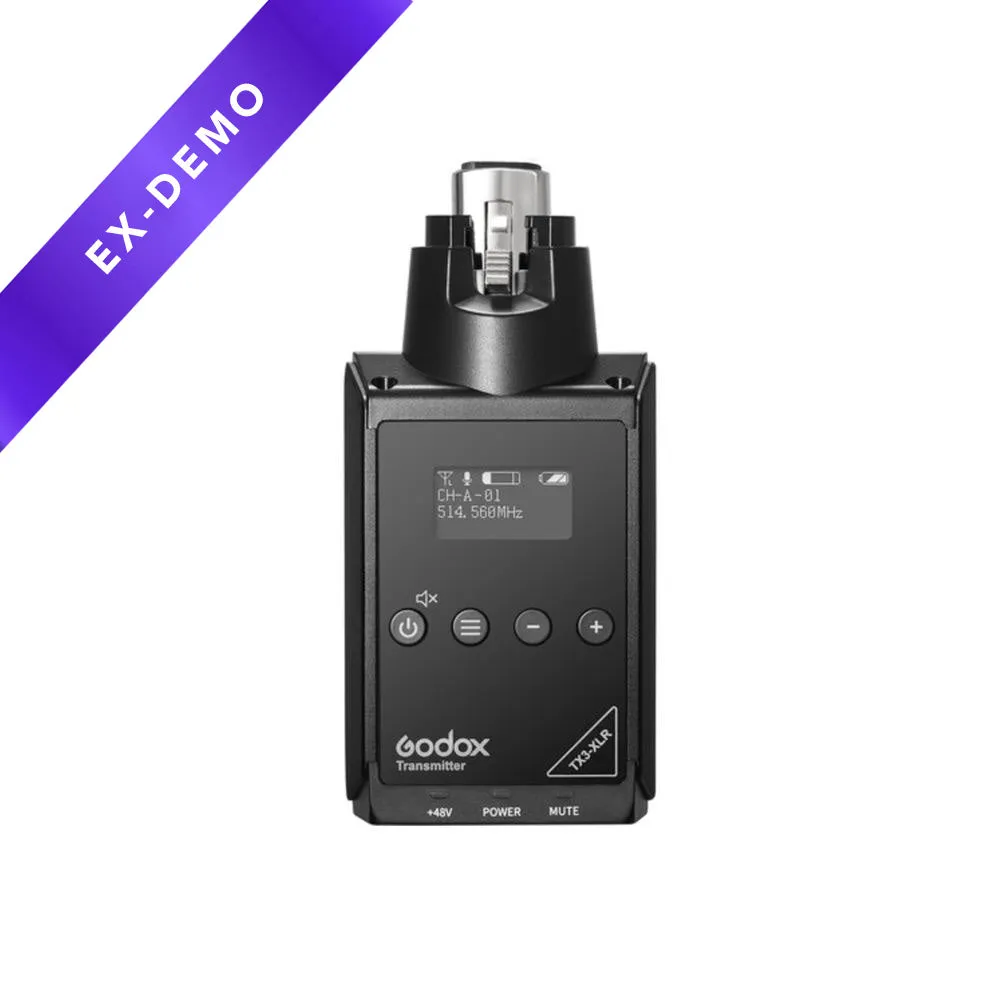

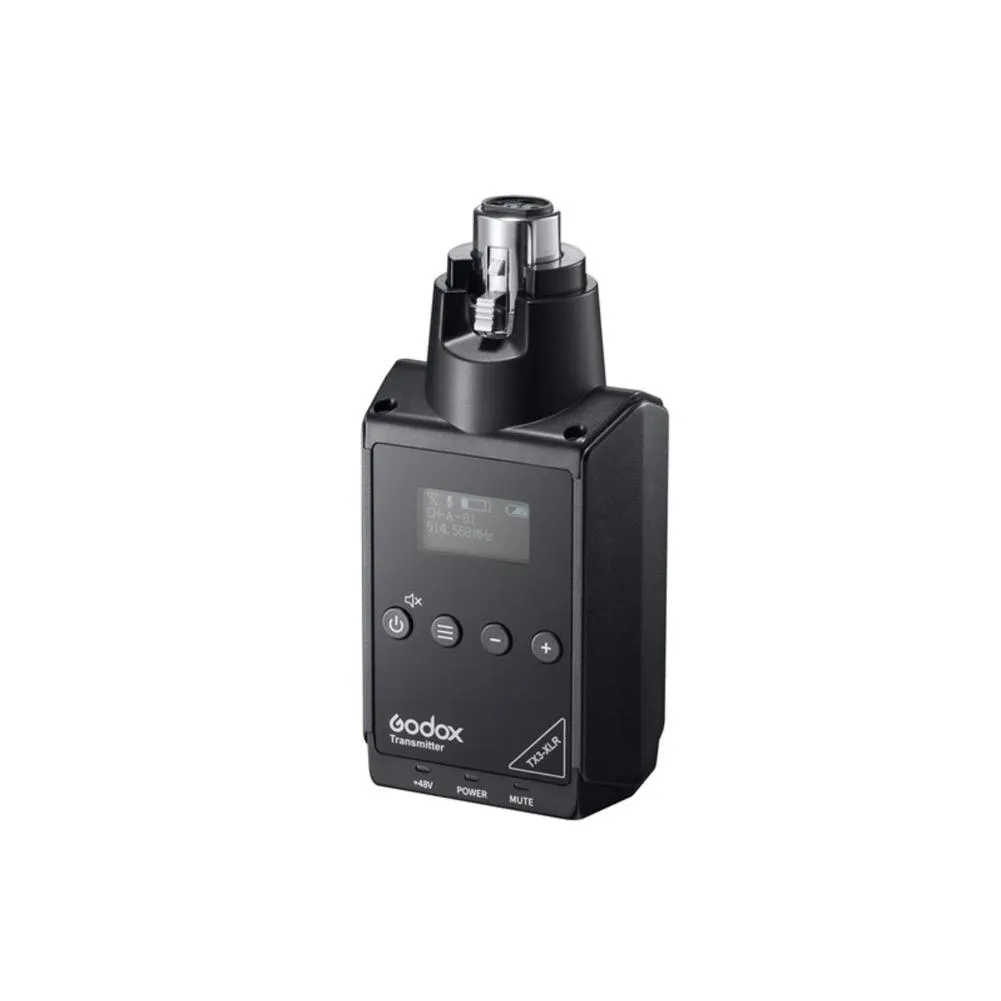

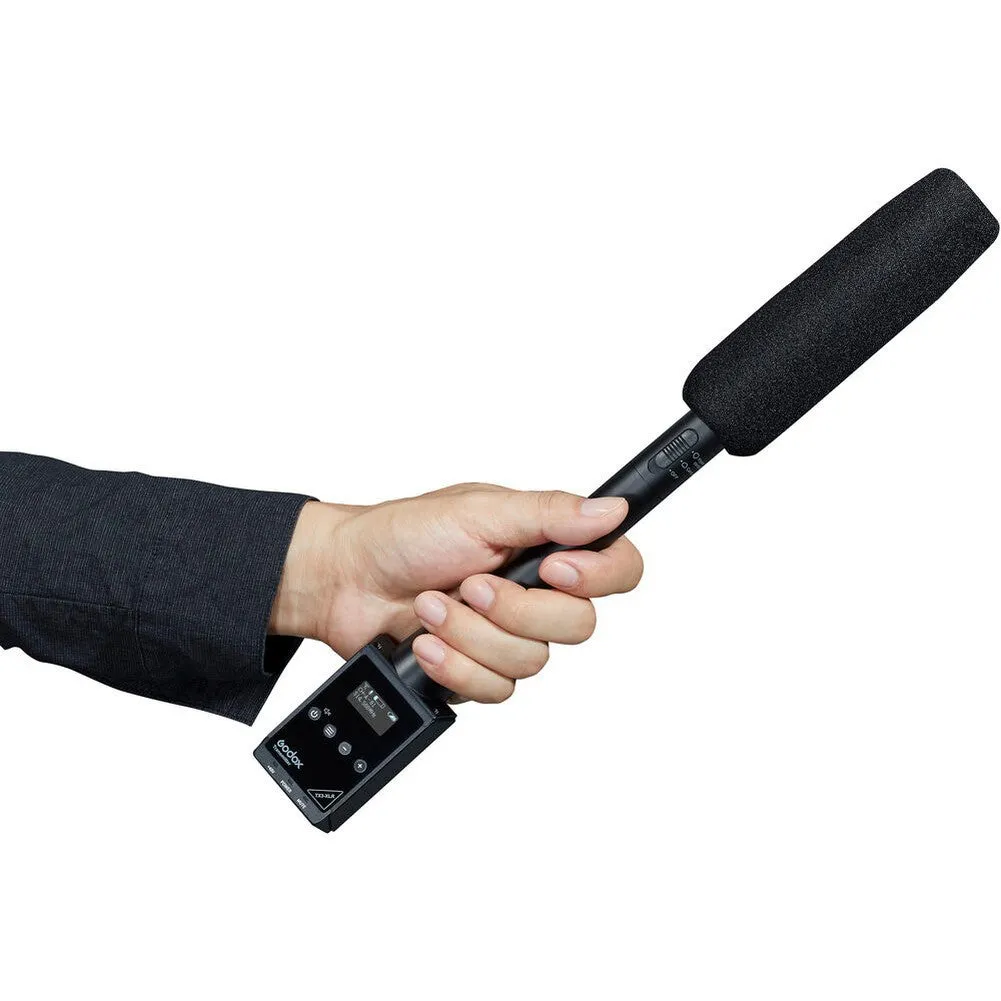

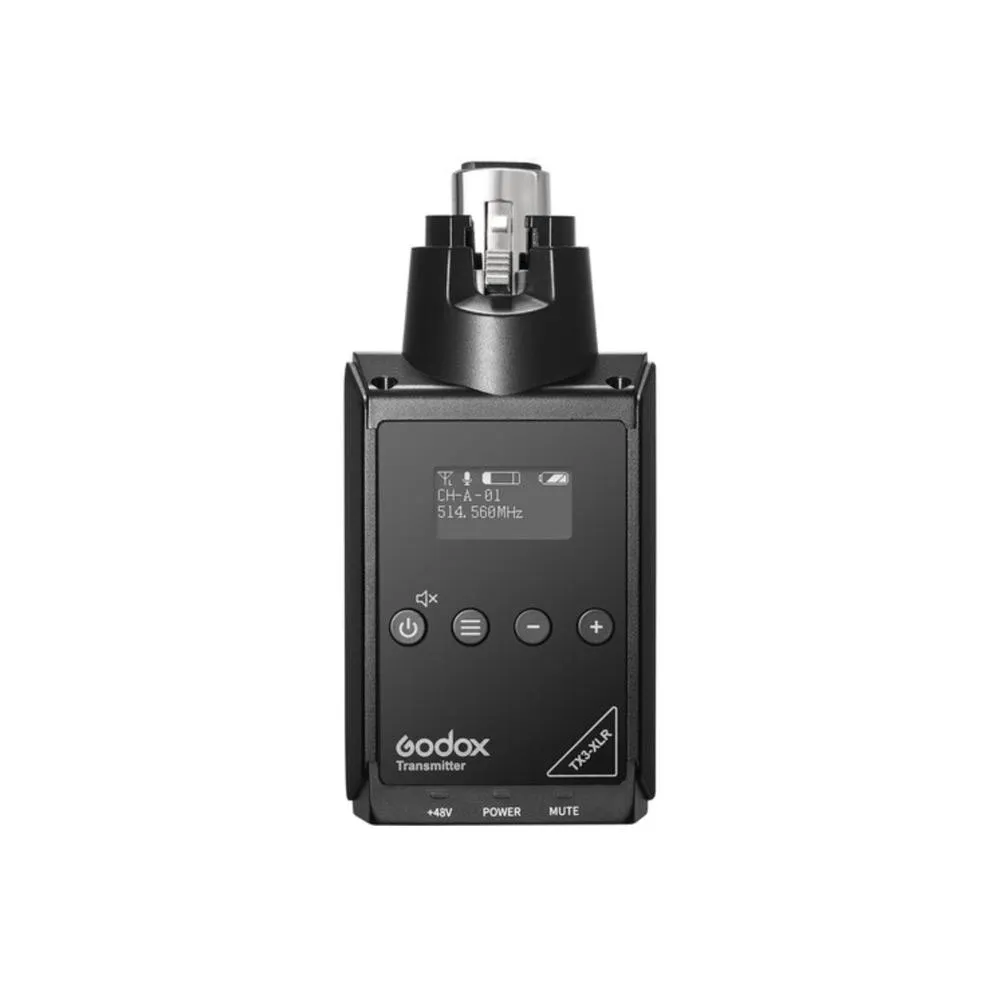

The Godox TX3-XLR is a plug-on wireless transmitter compatible with the WMicS1 wireless system. The lightweight design is comfortable for the talent to hold and can accommodate any handheld or shotgun XLR microphone (available separately). The transmitter can provide 48V phantom power for condenser mics and offers reliable transmission at a range up to 197' line-of-sight.
The TX3-XLR operates on two AA batteries and is equipped with an On/Off switch that doubles as a mute button. An easy-to-read backlit OLED screen with adjustable brightness shows the transmitter's frequency, channel/group, input level, muting, and battery life.
The system offers 96 manually selectable frequencies to choose from in order to create an interference-free transmission channel for wireless transmission to the RX1 receiver (available separately). The transmitter has two levels of RF transmission power: The high 50mW setting improves signal quality when working at greater distances, while the low 20mW setting offers maximum battery life when working at close range.
Features
- 60m Operating Range
- Long Endurance
- Mute Mode
- Live Monitoring
- UHF
Worry-Free Remote Transmission
Long-distance recording has never been so easy. Pairing up the TX3-XLR with the WMicS1, you get an outstanding UHF wireless system. The maximum operating range is 60 m in obstacles-free environment.
Selectable 96 Channels
A wide selection of channels works to avoid interference.
Adjustable RF Power Output
Switching to High when you need a boost for signal; switching to Low when you need to conserve power.
PRO Live Monitoring
It allows real-time monitoring with headphones during recording. And you can adjust the volume flexibly with receiver.
Ease of Use
Plug-and-play XLR locking connector guarantees flexibility; HD OLED display promises visibility; All-metal housing secures stability.
Specifications
| Wireless Transmission | Analog UHF |
| RF Frequency Band | 514 to 596 MHz |
| RF Channel Scanning | Manual |
| Max Operating Range | 196.9' / 60 m (Line of Sight) |
| Built-In Recorder | No |
| Latency | 12 ms |
| Encryption | None |
| Form Factor | Plug-On |
| RF Output Power | 20 / 50 mW (Switchable) |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) |
| Included Cable Connector | None |
| Phantom Power | 48 V |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Frequency Response | 40 Hz to 18 kHz |
| Sync Method | Manual |
| Antenna | 1 x 1/4 Wave Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Display & Indicators | 1 x OLED (Audio Level, Battery Status, Channel, Mute, RF Output Power) |
| Housing | Metal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 104°F / -10 to 40°C |
| Dimensions | 2 x 4.2 x 1.3" / 51 x 107 x 34 mm |
| Weight | 5.6 oz / 158 g (without Batteries) |
What's Included
1 x Godox XLR Transmitter TX3-XLR
