Unlike traditional firewalls, the Barracuda F12 next-gen firewall is designed specifically to support public cloud deployment and consumption. They protect users, applications and data—regardless of your infrastructure’s layout.
The Barracuda F12 uses priority level security. But it also gets high marks for value, ease of deployment / management, advanced threat detection, and support. With a CloudGen firewall, you can manage policies from a single firewall device. And you can get live monitoring on what is happening with the devices. CloudGen firewalls also reduce the amount of spam that can pass through the network.
Features
The Barracuda F12 gives you full user and group awareness, Advanced Threat Protection (incl. sandboxing), built-in web security and IDS/IPS and full SD-WAN capabilities.
Firewalling, IPS, URL filtering, dual antivirus and application control take place directly in the data path. More resource-intensive tasks like sandboxing — for protecting against ransomware—are seamlessly integrated in the cloud. All CloudGen Firewall platforms and models provide the same level of security, maintaining maximum security from branch offices to headquarters.
The Barracuda F12 reaches 1.2 Gbps of Firewall Throughput and 230 Mbps of Threat Protection Throughput. It manages 250 Mbps of NGFW Throughput, 400 Mbps of IPS Throughput, and 220 Mbps of SD-WAN Throughput. It also runs 80,000 Concurrent Sessions, with a recommended concurrent user count of 5-75 people.

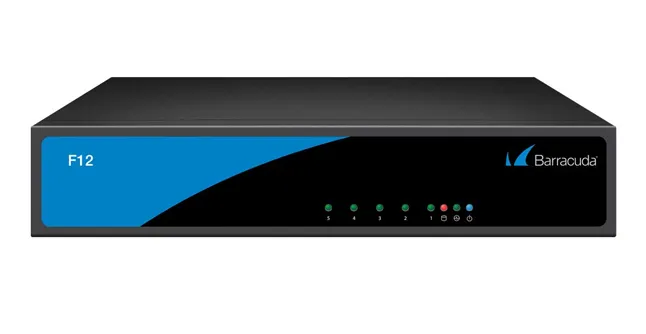

Barracuda Networks CloudGen Firewall F12
- 230 Mbps of Threat Protection Throughput
- 1.2 Gbps of Firewall Throughput
- 400 Mbps of IPS Throughput
- Concurrent user count of 5-75 people
Product Description: Barracuda CloudGen Firewall F-Series F12 - firewall Device Type: Firewall Form Factor: External - 1U Localization: North America Processor: Intel RAM: 2 GB Hard Drive: 80 GB x 1 Ports Qty: 5 Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Performance: Firewall throughput (UDP): 1.2 Gbps ¦ VPN throughput (128-bit AES, TINA): 220 Mbps ¦ VPN throughput (256-bit AES, TINA): 200 Mbps ¦ VPN throughput (256-bit AES, SHA-256): 170 Mbps ¦ VPN throughput (256-bit AES, MD5): 200 Mbps ¦ VPN throughput (256-bit AES, GCM): 170 Mbps ¦ IPS throughput (UDP): 400 Mbps ¦ NGFW throughput: 250 Mbps ¦ Threat protection throughput: 230 Mbps Capacity: Concurrent sessions: 80000 ¦ New sessions per second: 8000 ¦ Maximum number of users: 5 - 75 VoIP Protocols: H.323, SCCP, SIP Included Accessories: USB flash drive OS Required: Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10, Apple MacOS X 10.5 - 10.11 Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 9.1 in x 6 in x 1.7 in Weight: 4.41 lbs -
General
Device Type: Firewall Height (Rack Units): 1U Built-in Devices: LED panel Width: 9.1 in Depth: 6 in Height: 1.7 in Weight: 4.41 lbs Localization: North America -
Processor / Memory / Storage
Processors Installed: Intel RAM: 2 GB Hard Drive: SSD 80 GB x 1 -
Networking
Form Factor: External Ports Qty: 5 Connectivity Technology: Wired Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, PPPoA, ARP, SMTP, FTP, DHCP, DNS, POP3, SMB, DDNS, SMTPS Routing Protocol: OSPF, RIP, BGP Remote Management Protocol: SNMP, SSH, CLI, SMTP, SMTPS Performance: Firewall throughput (UDP): 1.2 Gbps ¦ VPN throughput (128-bit AES, TINA): 220 Mbps ¦ VPN throughput (256-bit AES, TINA): 200 Mbps ¦ VPN throughput (256-bit AES, SHA-256): 170 Mbps ¦ VPN throughput (256-bit AES, MD5): 200 Mbps ¦ VPN throughput (256-bit AES, GCM): 170 Mbps ¦ IPS throughput (UDP): 400 Mbps ¦ NGFW throughput: 250 Mbps ¦ Threat protection throughput: 230 Mbps Capacity: Concurrent sessions: 80000 ¦ New sessions per second: 8000 ¦ Maximum number of users: 5 - 75 Status Indicators: Power, HDD activity, status, link/activity Features: Firewall protection, routing, NAT support, VPN support, PAT support, ARP support, load balancing, VLAN support, Syslog support, traffic shaping, Stateful Packet Inspection (SPI), DoS attack prevention, manageable, Intrusion Detection System (IDS), IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, IPSec Virtual Private Network (VPN), Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), SSH support, DHCP server, FTP proxy, HTTP proxy, reset button, bandwidth control, IPv4 support, fanless, anti-spyware protection, web threat protection, e-mail protection, DHCP relay, SNMP trap, application filtering, DHCP client, e-mail notification, Identity Awareness, Virtual Routing and Forwarding (VRF), SMS remote control, DNS caching, VoIP support, anti-virus protection, traffic replication, event notification, Web Filtering, Jumbo Frames support (up to 9000 bytes), black list, white list, bridge mode, Transparent Proxy, built-in hardware crypto accelerator, flooding detection Encryption Algorithm: DES, Triple DES, Blowfish, CAST, SSL, TLS, PKI, 128-bit AES, 256-bit AES Authentication Method: SecurID, RADIUS, X.509 certificates, TACACS , LDAP, Active Directory, NTLM Compliant Standards: IEEE 802.1Q, X.509 -
IP Telephony
VoIP Protocols: H.323, SCCP, SIP -
Expansion / Connectivity
Interfaces: 5 x 1000Base-T - RJ-45 ¦ 4 x USB 3.0 - Type A ¦ 1 x console - RJ-45 -
Miscellaneous
Included Accessories: USB flash drive Cables Included: 1 x network cable ¦ 1 x serial cable MTBF: 5 years Compliant Standards: FCC, RoHS -
Power
Power Device: External power adapter Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 45 Watt -
Software / System Requirements
OS Required: Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10, Apple MacOS X 10.5 - 10.11 -
Dimensions & Weight (Shipping)
Shipping Width: 12.2 in Shipping Depth: 10.2 in Shipping Height: 7.1 in Shipping Weight: 5.29 lbs -
Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) -
Special Feature
COO: UNITED STATES -
UNSPSC Code: 43222501
