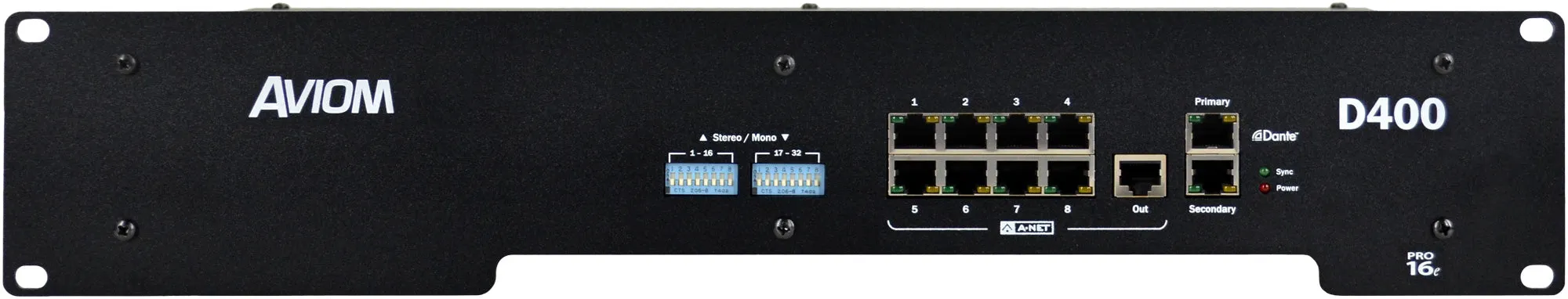

The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.
There are two versions of the D400 product. The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.
The D400 and D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.
Connecting to Dante
If your audio system uses Dante audio networking, the D400-Dante is a great choice for basic connectivity to a Dante network.
The D400-Dante allows you to select any 32 channels from your 44.1/48kHz Dante network and assign them to your Aviom Personal Mixers using the Dante Controller application from Audinate.
Specifications
| A-Net Out to Personal Mixers | Eight RJ45 connectors, powered; Compatible with A640, A360, A320, and A-16II Personal Mixers |
|---|---|
| A-Net Out | Pro16e A-Net; RJ45 connector, unpowered Supports system expansion and the A-16II, A320, and A360 Personal Mixers |
| LEDs | Power On (red); Network Sync (green) |
| Stereo Link | Two 8-position DIP switch blocks (1-16, 17-32) |
| Output Voltage for Personal Mixers | 24VDC, 0.5 amp; Transmitted over the Cat-5e cable |
| A-Net Cables | Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all other network connections |
| Power Supply | Internal, IEC connector |
| Input Voltage | 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max |
| AC Fuse Types | 115V range: T2.5AL/250V, slow-acting 230V range: T1.25AL/250V; slow-acting |
| Dimensions | 19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high |
| Weight | 12.0 lbs (5.44 kg) |
| Dante Interface | 32 channels from a Dante network (44.1/48kHz Sample Rate only) |
|---|---|
| Dante Primary I/O | RJ45 connector |
| Dante Secondary I/O | RJ45 connector |
| Dante LEDs | Network Activity (green); 1GB Network Connection Active (yellow) |
| Static IP support | Yes |
| AES67 Support | Yes |
